Buy Gigabyte GeForce RTX 5090 Windforce OC 32G | GeForce RTX 5090 Restocked | Where To Find RTX 5090 Windforce OC In Stock Near Me
- Efficient triple-fan cooler design with semi-passive cooling
- Extremely high base clock of the GPU: 2.017 MHz
- Enormous boost clock of the GPU: 2.467 MHz
- Next-generation graphics memory: 32 GB GDDR7
- Extremely high memory clock: 2,209 MHz (effective 28,000 MHz)
- Wide memory interface of 512-bit
- Very large memory bandwidth of 1,792 GB/s
- Pure computing power: 21,760 CUDA cores (shaders)
- Additional PCIe power connectors: 1x 16-pin 12VHPWR
- Video outputs: 3x DP 2.1b, 1x HDMI 2.1
- Supports DLSS 4 and NVIDIA Reflex 2
- Powered by the NVIDIA Blackwell architecture and DLSS 4
- Powered by GeForce RTX™ 5090
- Integrated with 32GB GDDR7 512bit memory interface
- WINDFORCE cooling system
- Hawk fan
- Server-grade Thermal conductive gel
- Dual BIOS (Performance / Silent)
- Reinforced structure
- Versatile VGA holder
CORE CLOCK
2467 MHz (Reference card : 2407MHz)

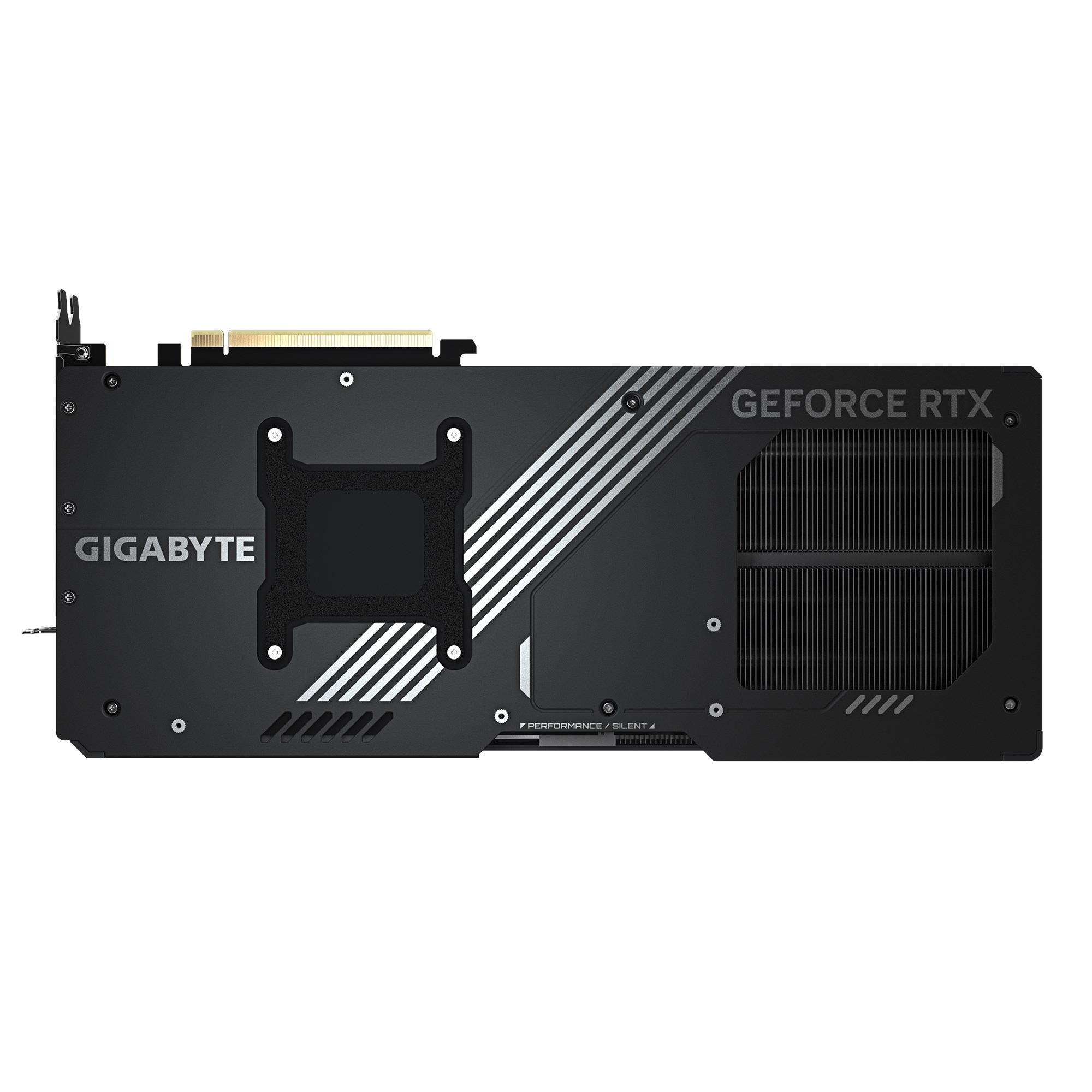

The GIGABYTE GeForce RTX 5090 Windforce OC 32G in detail
The GeForce RTX 5090 is the ultimate choice for enthusiasts and high-end gamers who do not want to compromise. Equipped with an extremely powerful graphics processor and new GDDR7 graphics memory, it sets new standards in gaming performance. With its unparalleled computing power, the RTX 5090 delivers top performance even in the most demanding applications and games.
Compared to the RTX 4090 series, the rasterization and ray tracing performance have been significantly enhanced once again, allowing realistic light, shadow, and reflection effects to be rendered in unprecedented quality. The new Blackwell generation also supports PCI Express 5.0, making the card optimally equipped for the next generation of motherboards and systems.
The RTX 5090 enables extremely high frame rates in 4K, offers impressively smooth gaming even in 8K, making it the perfect choice if you want to play without worrying about graphics settings. Just set maximum graphics presets and start playing!
HAWK FAN
The Hawk Fan features a unique blade design inspired by the aerodynamics of an eagle’s wing. This design reduces air resistance and noise levels, resulting in up to a 53.6% increase in air pressure and a 12.5% increase in air volume without compromising acoustics.
|
Colour
|
|
|
Primary Colour
|
Black
|
|
Dimensions
|
|
|
Length / Depth
|
342 mm
|
|
Width
|
150 mm
|
|
Height
|
65 mm
|
|
Graphics Card
|
|
|
GPU Series
|
RTX 50 Series
|
|
GPU Model
|
|
|
NVIDIA GeForce RTX 5090
|
|
|
GPU Series Name
|
NVIDIA GeForce RTX 5090
|
|
Graphics Chip
|
GB202-300
|
|
Manufacturing Process
|
5 nm
|
|
Shader Units
|
21760
|
|
Tensor Cores
|
680
|
|
Raytracing Cores / Ray Acceleratorss
|
170
|
|
GPU Memory Type
|
GDDR7
|
|
Slot Type Standard
|
PCIe 5.0
|
|
GPU Memory Size (GB)
|
32
|
|
GPU Memory Interface (bit)
|
512
|
|
GPU Memory Bandwidth (GB/s)
|
1792
|
|
GPU Effective Memory Clock (MHz)
|
2209
|
|
Clock Speeds
|
|
|
Max. GPU Clock (Base)
|
2017 MHz
|
|
Max. GPU Clock (Boost)
|
2467 MHz
|
|
Max. Memory Clock
|
28000 MHz
|
|
Cooling
|
|
|
Number of GPU Fans
|
3
|
|
Water Cooling
|
|
|
Watercooling
|
No
|
|
Internal Ports
|
|
|
Required Power Connectors
|
16-pin PCIe 5.0 – 12VHPWR (1x)
|
|
External Ports
|
|
|
Display Connectors
|
Display Port (3x), HDMI (1x)
|
|
Expansion Slots
|
|
|
Expansion Slots Required
|
3.1 Slots
|
|
Standards / Specifications
|
|
|
Adaptive Sync Technology (G-SYNC / FreeSync)
|
NVIDIA G-SYNC
|
|
Features
|
|
|
Virtual Reality Ready
|
Yes
|
|
AI
|
|
|
AI Acceleration
|
Yes
|
|
AI Accelerator
|
Tensor Cores
|
|
Lighting
|
|
|
Lighting / RGB
|
No
|
