DESCRIPTION

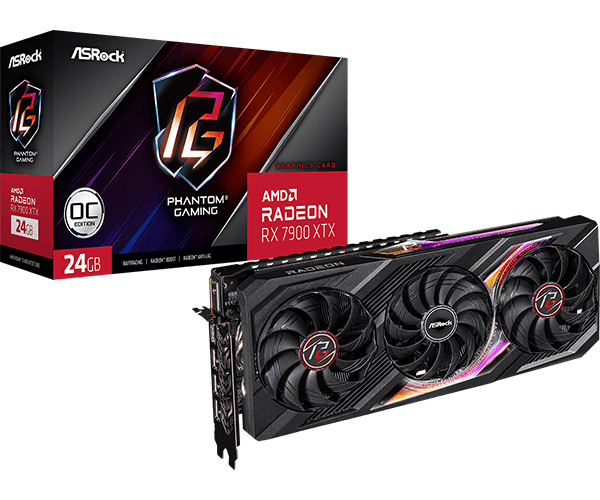

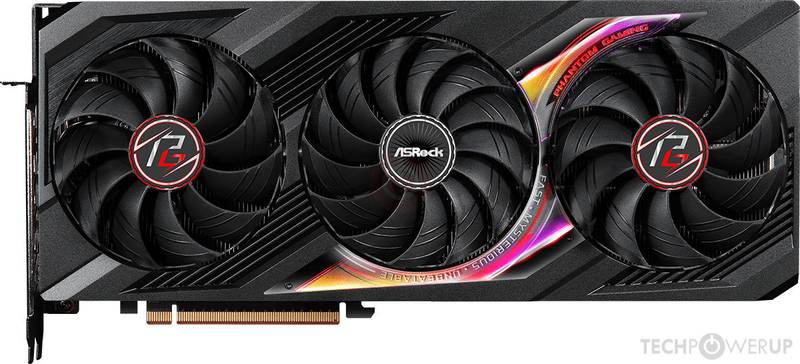

Buy Asrock Radeon Phantom Gaming RX 7900 XTX 24GB GDDR6 Graphics Card. Based on the RDNA 3 architecture, the ASRock AMD Radeon RX 7900 XTX Phantom Gaming 24GB OC graphics card is designed for 4K UHD gaming. Powerful and efficient, it will delight gamers and creative minds looking for a high-performance, innovative graphics solution.
Key Features:
- 24GB GDDR6 Graphics Memory
- PCI Express 4.0 x16 Interface
- Overclocked Edition
- Outputs – HDMI and Display Port
Reverse Spin
The center fan spins reversely to lower turbulence and enhance air dispersion through the heatsink.
Phantom Gaming 3X Cooling System
For Cool And Silent.
Crafted for the best balance between the thermal efficiency and silence by all the details.
Striped Ring Fan
Designed For Enhanced Airflow
ASRock’s all new Striped Ring Fan get more lateral intake and to provide better airflow through the cooling array.
Air Deflecting Fin
Guide Airflow To Go Through Regularly & Quickly.
Guide the airflow to go more regularly and quickly to enhance the cooling efficiency by the V-shaped cutting fins and the V-shaped air vents.
Ultra-Fit Heatpipe
Consolidated To Maximize The Contact.
The heatpipes are consolidated to maximize the contact among each others and also the GPU baseplate for the optimized heat dissipation.
Nickel-Plated Copper Base
Maximize GPU Contact Area.
With premium copper base heatsink design, the direct contact area to the GPU would be maximized to improve thermal transfer effectively.
High-Density Metal Welding
Improve Heat Dissipation.
Effectively isolate all coverage of the gap between pipe and stacked fins, hence improve heat dissipation effectively.
Nano Thermal Paste
Perfect Thermal Teamwork.
Eliminate the gaps in the contact area to maximize heat transfer and thermal efficiency.
Premium Thermal Pad
Better Heat Transfer.
The premium thermal pad helps to transfer the heat of the components to the heatsink, improving heat dissipation.
Precise Screw Torque
Optimized Mounting Pressure.
ASRock adopts precise screw torque when assembling its graphics cards to optimize the cooler mounting pressure to improve thermal efficiency while avoiding damage to GPU die.
0dB Silent Cooling
Spin For Cooling, Stop For Silence.
The fan spins when the temperature goes high for the optimal cooling, and stops when the temperature goes low for the complete silence.
Polychrome SYNC
Create Your Own Unique Colorful Light Effects.
With the integrated ARGB LEDs, you can create your own unique colorful light effects which can also be switched on and off. It can also be synchronized with your ASRock motherboards that support Polychrome SYNC.
LED On/Off Switch
On Or Off? Switch As You Want.
You can switch not only the built-in ARGB LEDs but also the ARGB LEDs equipping with the connected strips/devices at once.
ARGB Pin-Header
More ARGB, More Fancy.
With the ARGB pin-header, it can connect ARGB strips/devices to make the lighting effects more rich and vivid.
Reinforced Metal Frame
Enhances the structure to prevent the PCB from being bent.
Stylish Metal Backplate
Solid, Fancy, Cool.
Designed to avoid PCB bending. The fancy outlook makes the graphic card more legendary in visual. It also helps to enhance cooling with the premium thermal pads equipped backside.
Main Features
- Polychrome SYNC
- Phantom Gaming 3X Cooling System
- Striped Ring Fan
- Reinforced Metal Frame
- Stylish Metal Backplate
- 0dB Silent Cooling
- Super Alloy Graphics Card
GPU
| Chipset Manufacturer | AMD |
| Chipset Model Name | Radeon RX |
| Chipset Model Number | 7900 XTX |
| Chipset Additional Information | Phantom Gaming OC |
| Boost Chip Clock | Up to 2615 MHz |
| Graphics Core | Stream Processors |
| Number of Cores | 6144 |
Memory
| Memory Size | 24576 MB |
| Memory Clock | 20 Gbps |
| Memory Type | GDDR6 |
| Memory Width | 384 bit |
Interfaces/Ports
| Video Card Bus Type | PCI Express |
| Video Card Bus Version | 4.0 x16 |
| HDMI Port | 1 x HDMI 2.1 |
| DisplayPort | 3 x DisplayPort 2.1 |
Resolution
| Multiple Monitor Support (Max) | Yes (4) |
| Maximum Resolution | 7680 x 4320 pixels |
System Requirements
| System Requirements | 1 x PCI Express 4.0 x16 slot Recommended 1000W or greater PSU with 3 x 8-pin PCIe connectors |
Electrical
| Power Connector | 3 x 8-pin PCIe |
| Recomended Power Supply | 1000 W |
Physical
| Form Factor | Graphics Card |
| In The Box | Graphics Card Quick Installation Guide |
| Width | 57.6 mm (2.8 slot) |
| Depth | 330 mm |
| Height | 140 mm |
| Weight | 1.55 kg |
Warranty
| Warranty | 2 Years |
Key Features
| Interface Type | PCI Express 4.0 x16 |
| Graphics Memory Type | GDDR6 |
| Main Colour | Black |
| VGA Connection | No |
| DVI Connection | No |
| HDMI Connection | Yes |
| Graphics Usability | Gaming |
| DisplayPort Connection | Yes |
| Direct X Support | Direct X 12 |
| Cooler Type | Dynamic Fan Inc. 0dB Mode |
| Low Profile | No |
| AMD Radeon | RX 7900 XTX |
| PCIe Pin Type | 3 x 8-Pin |
| FreeSync | Yes |
| Cooling Technology | Dynamic Fan Inc. 0dB Mode |
| VR Ready | AMD |
| GPU Length | 330 mm |
| Card Width | 3 |
| Power Requirement (auto) | 355 W |
| GPU Power (TDP) | 355 W |
| Graphics card count | 1 |
| PCI Express Power Pins (female) | 24 |
| PCIe Physical Slot required | 16 |
| 12VHPWR 16-pin Connector | No |
Graphics
| Graphics Chipset | Radeon RX 7900 XTX |
Graphics Device
| G-Sync | No |
Item Details
| Manufacturer | ASRock |
| Manufacturer Code | 90-GA3YZZ-00UANF |
| EAN | 4710483941733 |
| Condition | New |
